Sonicnine Sonic Nozzle Prover

  • Sonicnine Lift Prover

Introducing the new Sonicnine™ Lift!  All of the benefits of Sonicnine™, with an adjustable-height table.

Background

Since its inception in 1993, sonic nozzle proving has become the de facto standard for meter measurement and calibration. The use of sonic nozzle technology has advanced quite a ways since then, and provides a fast, effective, and lower cost solution than traditional methods of meter proving.

How it works

Sonic nozzle proving takes advantage of a flow property called “choked flow”. When air flows through a venture nozzle with a large enough pressure gradient, the flow becomes sonic. At this point volumetric flow through the nozzle can be calculated extremely precisely.

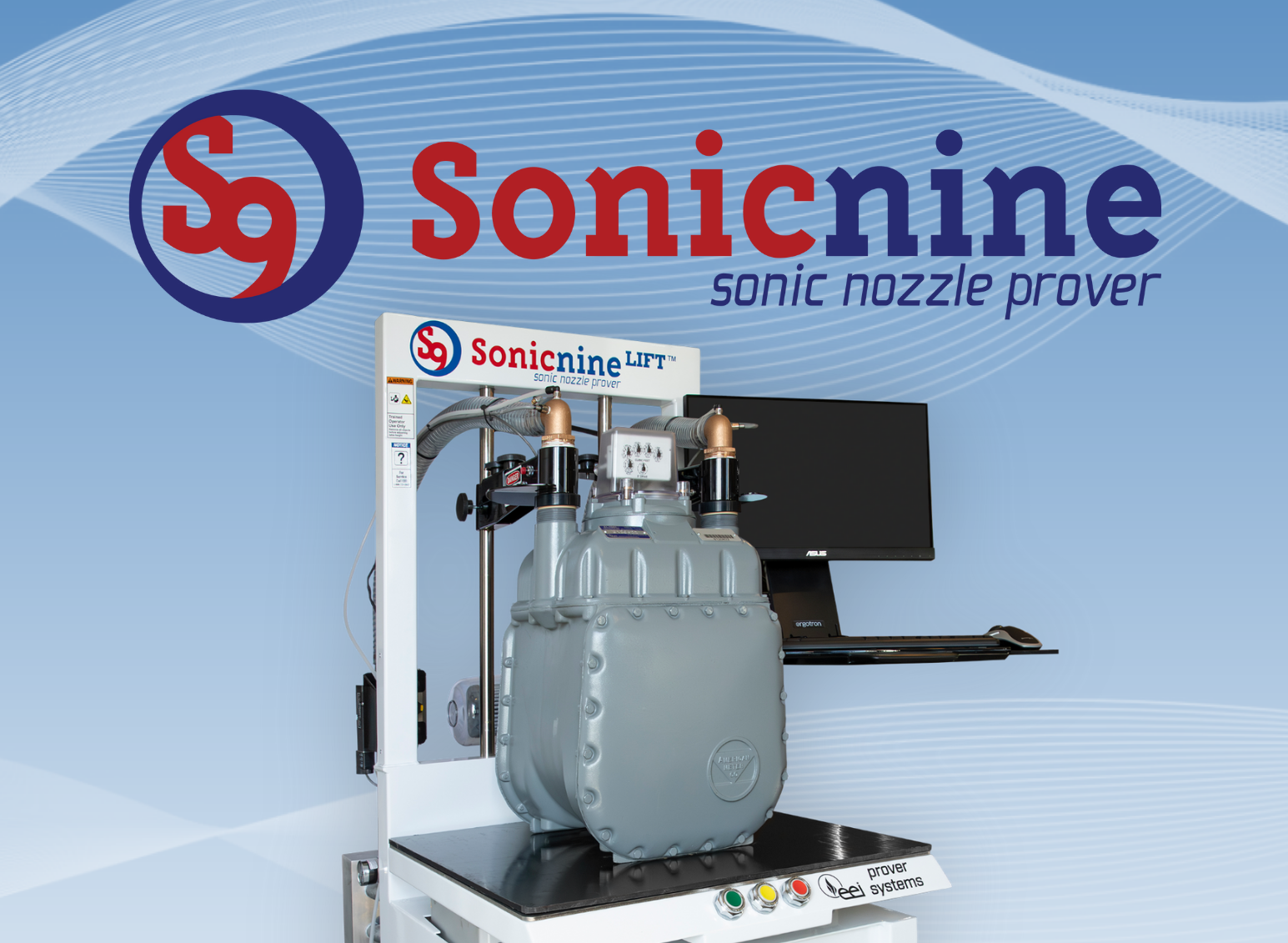

Sonicnine™ Lift Prover

With increasing demand for utility companies to provide consistent return on investment (ROI) strategies, the Sonicine™ Sonic Nozzle Prover from EEI is the most effective sonic nozzle solution available. Our development staff has established the criteria by which all other provers are measured. Add to this close integration with EEI’s  Meter Management System® (MMS)  and the Sonicnine™ system becomes an incredibly strong tool for meter management and calibration. The feature-rich set of tools provides our customers with real time access to information that ordinarily could take days to assemble.

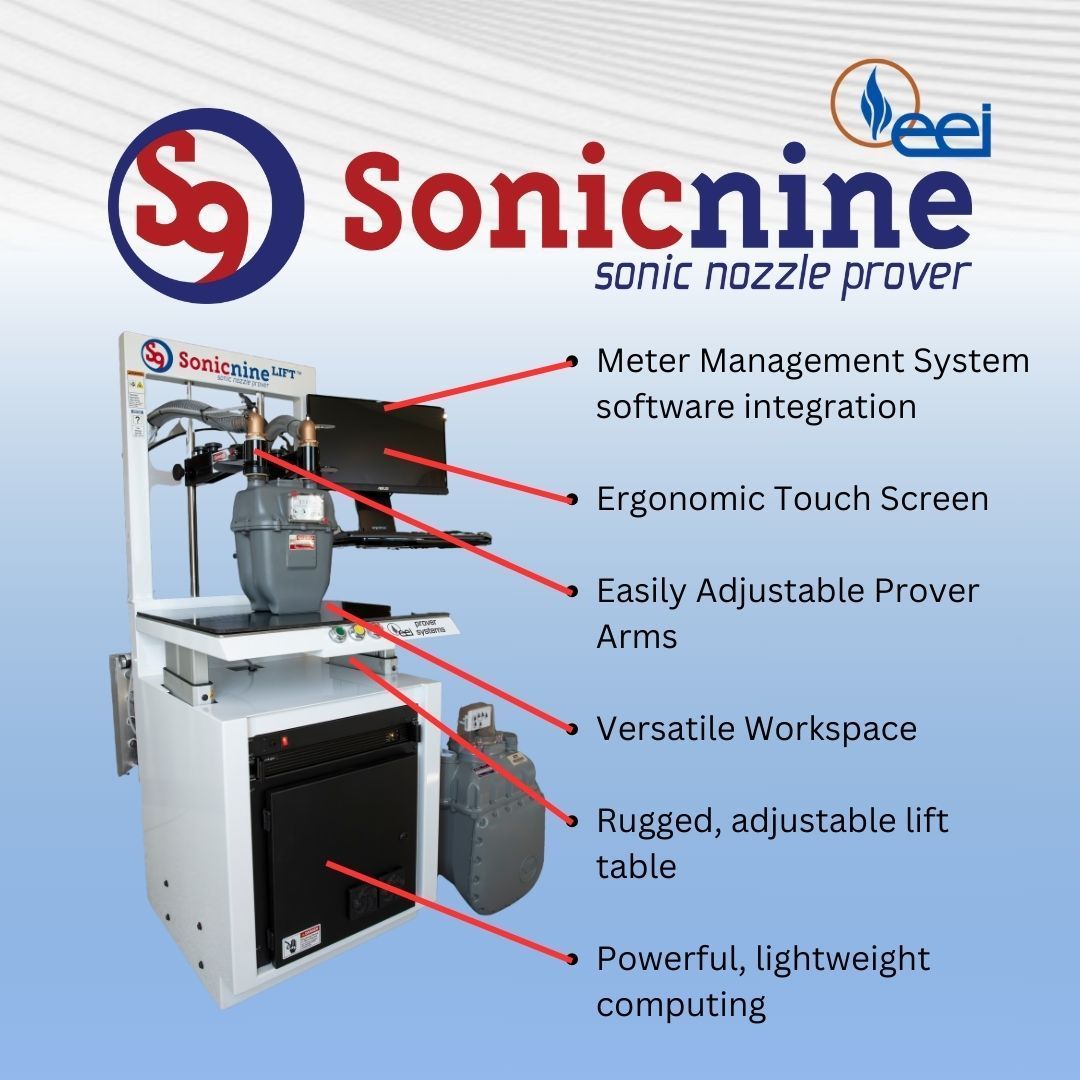

Features and Benefits

These are some of the features and benefits of the Sonicnine™:

  • State of the art software with a user-friendly Windows interface
  • Up to nine sonic nozzles that combined provide flow rates in excess of 1500cfh
  • Precision nozzle sets that provide nominal flow rates within 1.5 cfh of any targeted flow
  • Adjustable arms that move both left-right and up-down to accommodate a majority of meters on the market.
  • AIMS™ (Automated Internal Motion Sensor), a proprietary sensing algorithm for index free calibration.
  • Pulse Proving – requires no sensor setup and can prove tin, iron, plastic, and large volume meters quickly and accurately.
  • Adjustable table height, for multiple meter sizes and increased ergonomics. (Sonicnine Lift only).

The feature-rich set of tools provides our customers with real time access to information that ordinarily could take days to assemble.

Sonicnine Brochure

Call a sales associate at (800) 733-2557 for more information.  Click here for more contact options.
